Extended Shortcode - Mermaid

Lruihao Lruihao included in Documentation and Extended Shortcodes
  About 1900 words 9 minutes - views

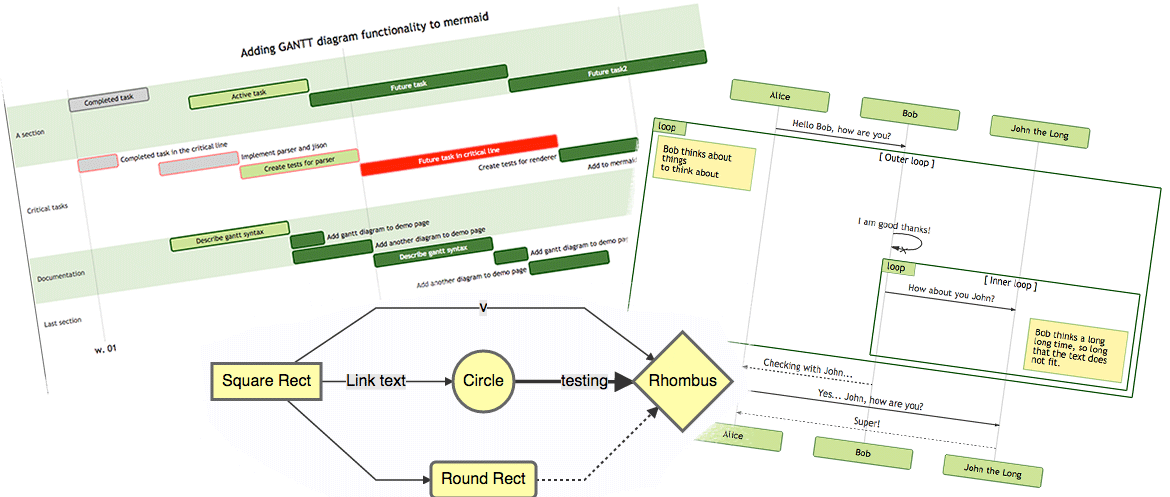

/docs/content-management/shortcodes/extended/mermaid/featured-image.png
Contents
FixIt 0.4.0 | CHANGED

The mermaid shortcode supports diagrams in Hugo with Mermaid library.

Mermaid is a library helping you to generate diagram and flowcharts from text, in a similar manner as Markdown.

Usage

The Code Fences extended syntax ```mermaid is recommended over the shortcode.

You can find more examples and usage information on the Diagrams Support - Mermaid page.

Syntax

Just insert your mermaid code in the mermaid shortcode and that’s it.

1
2
3

{{< mermaid >}}
// mermaid diagram code here
{{< /mermaid >}}

Named parameters are also supported:

1
2
3
4

{{< mermaid wrapper=false >}}
graph TD
    A[Start] --> B[End]
{{< /mermaid >}}
1
2
3
4

{{< mermaid filename="architecture.mmd" >}}
graph TD
    A[Client] --> B[Server]
{{< /mermaid >}}
Parameters
wrapper (bool) Optional. Overrides params.mermaid.wrapper for this shortcode instance.
filename (string) Optional. Sets the filename used by diagram/code download actions.

Configuration

For detailed configuration options and themes, please refer to the Diagrams Support - Mermaid page.

Flowchart

Example flowchart mermaid input:

1
2
3
4
5
6
7

{{< mermaid >}}
graph LR;
    A[Hard edge] -->|Link text| B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
graph LR;
    A[Hard edge] -->|Link text| B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]
graph LR;
    A[Hard edge] -->|Link text| B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]
graph LR;
    A[Hard edge] -->|Link text| B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]
1
2
3
4
5

graph LR;
    A[Hard edge] -->|Link text| B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]

Sequence Diagram

Example sequence diagram mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

{{< mermaid >}}
sequenceDiagram
    participant Alice
    participant Bob
    Alice->>John: Hello John, how are you?
    loop Healthcheck
        John->John: Fight against hypochondria
    end
    Note right of John: Rational thoughts <br/>prevail...
    John-->Alice: Great!
    John->Bob: How about you?
    Bob-->John: Jolly good!
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
sequenceDiagram
    participant Alice
    participant Bob
    Alice->>John: Hello John, how are you?
    loop Healthcheck
        John->John: Fight against hypochondria
    end
    Note right of John: Rational thoughts
prevail...
    John-->Alice: Great!
    John->Bob: How about you?
    Bob-->John: Jolly good!
sequenceDiagram
    participant Alice
    participant Bob
    Alice->>John: Hello John, how are you?
    loop Healthcheck
        John->John: Fight against hypochondria
    end
    Note right of John: Rational thoughts
prevail...
    John-->Alice: Great!
    John->Bob: How about you?
    Bob-->John: Jolly good!
sequenceDiagram
    participant Alice
    participant Bob
    Alice->>John: Hello John, how are you?
    loop Healthcheck
        John->John: Fight against hypochondria
    end
    Note right of John: Rational thoughts
prevail...
    John-->Alice: Great!
    John->Bob: How about you?
    Bob-->John: Jolly good!
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

sequenceDiagram
    participant Alice
    participant Bob
    Alice->>John: Hello John, how are you?
    loop Healthcheck
        John->John: Fight against hypochondria
    end
    Note right of John: Rational thoughts <br/>prevail...
    John-->Alice: Great!
    John->Bob: How about you?
    Bob-->John: Jolly good!

Class Diagram

Example class diagram mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

{{< mermaid >}}
classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
        +String beakColor
        +swim()
        +quack()
    }
    class Fish{
        -int sizeInFeet
        -canEat()
    }
    class Zebra{
        +bool is_wild
        +run()
    }
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
        +String beakColor
        +swim()
        +quack()
    }
    class Fish{
        -int sizeInFeet
        -canEat()
    }
    class Zebra{
        +bool is_wild
        +run()
    }
classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
        +String beakColor
        +swim()
        +quack()
    }
    class Fish{
        -int sizeInFeet
        -canEat()
    }
    class Zebra{
        +bool is_wild
        +run()
    }
classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
        +String beakColor
        +swim()
        +quack()
    }
    class Fish{
        -int sizeInFeet
        -canEat()
    }
    class Zebra{
        +bool is_wild
        +run()
    }
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
        +String beakColor
        +swim()
        +quack()
    }
    class Fish{
        -int sizeInFeet
        -canEat()
    }
    class Zebra{
        +bool is_wild
        +run()
    }

State Diagram

Example state diagram mermaid input:

1
2
3
4
5
6
7
8
9

{{< mermaid >}}
stateDiagram-v2
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
stateDiagram-v2
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]
stateDiagram-v2
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]
stateDiagram-v2
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]
1
2
3
4
5
6
7

stateDiagram-v2
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]

Entity Relationship Diagram

Example entity-relationship diagram mermaid input:

1
2
3
4
5
6

{{< mermaid >}}
erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
    CUSTOMER }|..|{ DELIVERY-ADDRESS : uses
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
    CUSTOMER }|..|{ DELIVERY-ADDRESS : uses
erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
    CUSTOMER }|..|{ DELIVERY-ADDRESS : uses
erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
    CUSTOMER }|..|{ DELIVERY-ADDRESS : uses
1
2
3
4

erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE-ITEM : contains
    CUSTOMER }|..|{ DELIVERY-ADDRESS : uses

User Journey

Example user journey mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

{{< mermaid >}}
journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 5: Me
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 5: Me
journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 5: Me
journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 5: Me
1
2
3
4
5
6
7
8
9

journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 5: Me

Gantt

Example Gantt mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

{{< mermaid >}}
gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram to mermaid
excludes weekdays 2014-01-10

section A section
Completed task            :done,   des1, 2014-01-06,2014-01-08
Active task               :active, des2, 2014-01-09, 3d
Future task               :        des3, after des2, 5d
Future task2              :        des4, after des3, 5d
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram to mermaid
excludes weekdays 2014-01-10

section A section
Completed task            :done,   des1, 2014-01-06,2014-01-08
Active task               :active, des2, 2014-01-09, 3d
Future task               :        des3, after des2, 5d
Future task2              :        des4, after des3, 5d
gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram to mermaid
excludes weekdays 2014-01-10

section A section
Completed task            :done,   des1, 2014-01-06,2014-01-08
Active task               :active, des2, 2014-01-09, 3d
Future task               :        des3, after des2, 5d
Future task2              :        des4, after des3, 5d
gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram to mermaid
excludes weekdays 2014-01-10

section A section
Completed task            :done,   des1, 2014-01-06,2014-01-08
Active task               :active, des2, 2014-01-09, 3d
Future task               :        des3, after des2, 5d
Future task2              :        des4, after des3, 5d
 1
 2
 3
 4
 5
 6
 7
 8
 9
10

gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram to mermaid
excludes weekdays 2014-01-10

section A section
Completed task            :done,   des1, 2014-01-06,2014-01-08
Active task               :active, des2, 2014-01-09, 3d
Future task               :        des3, after des2, 5d
Future task2              :        des4, after des3, 5d

Pie Chart

Example pie chart mermaid input:

1
2
3
4
5
6

{{< mermaid >}}
pie
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
pie
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15
pie
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15
pie
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15
1
2
3
4

pie
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15

Requirement Diagram

Example requirement diagram mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

{{< mermaid >}}
requirementDiagram

requirement test_req {
id: 1
text: the test text.
risk: high
verifymethod: test
}

element test_entity {
type: simulation
}

test_entity - satisfies -> test_req
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
requirementDiagram

requirement test_req {
id: 1
text: the test text.
risk: high
verifymethod: test
}

element test_entity {
type: simulation
}

test_entity - satisfies -> test_req
requirementDiagram

requirement test_req {
id: 1
text: the test text.
risk: high
verifymethod: test
}

element test_entity {
type: simulation
}

test_entity - satisfies -> test_req
requirementDiagram

requirement test_req {
id: 1
text: the test text.
risk: high
verifymethod: test
}

element test_entity {
type: simulation
}

test_entity - satisfies -> test_req
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

requirementDiagram

requirement test_req {
id: 1
text: the test text.
risk: high
verifymethod: test
}

element test_entity {
type: simulation
}

test_entity - satisfies -> test_req

Git Graph

Example git graph mermaid input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

{{< mermaid >}}
gitGraph
    commit
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit
    commit
{{< /mermaid >}}

The rendered output looks like this:

Diagram Code
gitGraph
    commit
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit
    commit
gitGraph
    commit
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit
    commit
gitGraph
    commit
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit
    commit
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

gitGraph
    commit
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit
    commit

Related Content

Included in Collection・Extended Shortcodes 16
Updated on 2026-08-19 0cc6cb1
CC BY-NC-SA 4.0
Read MarkdownView sourceEdit this pageReport issue
ShortcodesContent
Back | Home
Buy me a coffee
Lruihao AlipayAlipay
Lruihao WeChat PayWeChat Pay
Navigate Select ESC Close
Search by algolia

Update Available

A new version of this site is available.
